(1)油煙吸收率應大于95%，并采用同軸導流裝置。
(1) The absorption rate of oil fume shall be greater than 95%, and coaxial guide device shall be used.
(2)護罩應裝有鉸鏈式檢查門，便于衛(wèi)生和觀察。
(2) The guard shall be equipped with hinged inspection door for easy sanitation and observation.

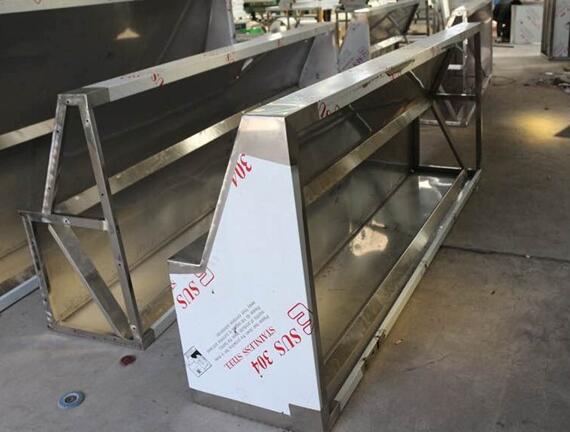

(3)設備全部采用不銹鋼材料，所有接頭均防水、防蒸汽、防油煙。
(3) All equipment is made of stainless steel, all joints are waterproof, steam proof and oil fume proof.
(4)風罩內嵌在吊頂內，兩者之間用不銹鋼裝飾板，用1.2 mm厚的不銹鋼板制造，便于拆卸，內嵌深度≥100 mm。
(4) The air cowl is embedded in the ceiling, and the stainless steel decorative plate is used between the two, which is made of 1.2mm thick stainless steel plate, easy to disassemble, and the embedded depth is ≥ 100mm.
(5)所有外殼均由厚度大于1.0 mm的不銹鋼板制成。
(5) All enclosures are made of stainless steel plates with a thickness greater than 1.0 mm.
(6)通風管道采用1.0鍍鋅鋼板，配不銹鋼、鐵制風量控制閥。
(6) The ventilation pipe adopts 1.0 galvanized steel plate, equipped with stainless steel and iron air volume control valve.
(7)照明設備是防濺、防水、凹面的，每隔1000毫米分布一次，并應將導線全部插在導管上，用接線盒連接。大于或等于600lux照度裝置，節(jié)能燈管，統(tǒng)一電源接口。
(7) Lighting equipment shall be splash proof, waterproof and concave, and shall be distributed every 1000mm. All wires shall be inserted on conduit and connected with junction box. More than or equal to 600lux illuminance device, energy saving lamp, unified power interface.
(8)抽油煙機的豎板上設有相結合的自卸裝置，排氣罐內的油煙及蒸汽易于清洗。排氣管由不銹鋼制成，并與引擎蓋的自動自清潔裝置平行連接。
(8) The vertical plate of the range hood is equipped with an integrated self unloading device, and the fume and steam in the exhaust tank are easy to clean. The exhaust pipe is made of stainless steel and connected in parallel with the automatic self-cleaning device of the engine hood.
The above content is provided by Jinan smoke hood company!
